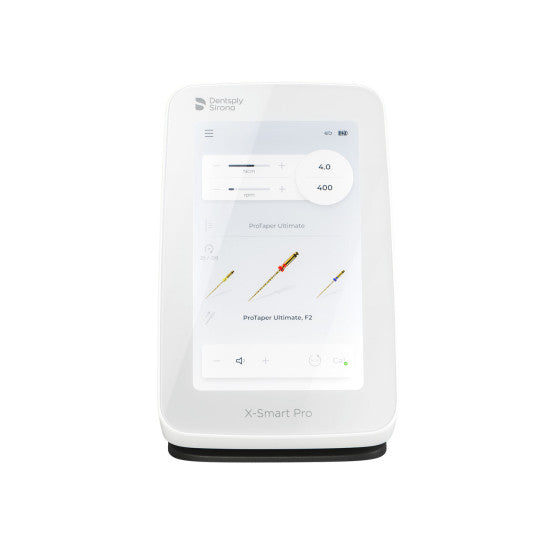

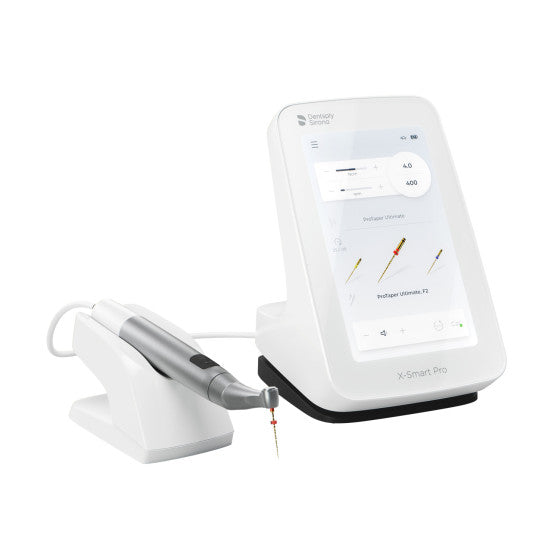

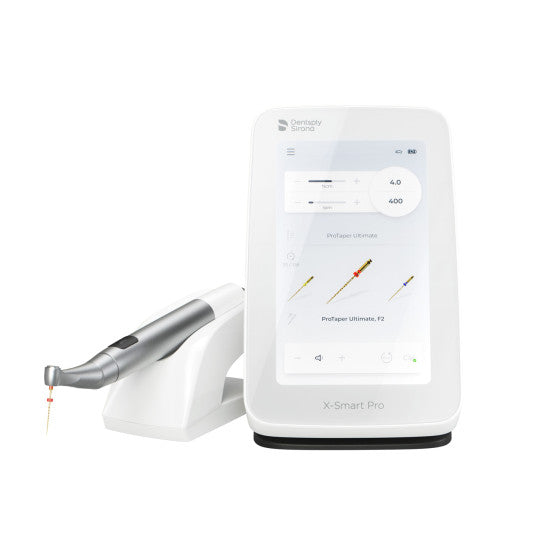

X-Smart Pro Endo Motor

The X-Smart Pro Endo Motor from Dentsply Sirona provides up to 7.5 N·cm and 3,000 rpm and optimizes performance of Dentsply Sirona’s endodontic file systems in both continuous rotation and reciprocating modes.

The X-Smart Pro features a mini contra-angle with integrated 10-lumen LED, a fully autoclavable handpiece sheath, a touchscreen interface that provides easy access to ideal settings for the files you choose, and upgradeable firmware to accommodate tomorrow’s treatments.

Advantages at a Glance

• Better together: Dentsply Sirona's endo file systems perform significantly better when paired with the X-Smart® Pro endo motor.
• Genuine Reciprocating Motion: Fine-tuned reciprocating motion for WaveOne® Gold family of files, with precise angulation, acceleration and speed for simplicity, safety and reliability.
• Abundant Power: Dedicated power and torque for optimal performance across a full range of anatomies with ProTaper Ultimate™ files.
• Mini-Contra Angle head with integrated 10-Lumen LED: Superior visibility and access. Locate and enter root canal with confidence. Easy treatment of patients with limited mouth opening. 360° adjustable position.
• Removable/autoclavable handpiece metal sheath: Comply with the latest infection control guidelines. Reduces waste, making handpiece barrier sleeves obsolete.
• User-friendly touchscreen interface: Large, easy-to-clean screen. Easy navigation with gloved hand. Up to 30 customizable file sequences with upgradable firmware to accommodate future file systems. Optional Bluetooth foot switch.
• Portable and ergonomic design: Battery power to support a full day of work. Portable convenience with the power and functions of a tabletop unit. Drag and drop magnetic holder for enhanced comfort, reduced fatigue.

Responsive Control

The patented Brushless DC Motor control enables quicker reaction times for stable file settings.

Unlike the periodic feedback of brush and sensor-based motor control, X-Smart® Pro features a patented sensorless system for 360° speed and torque feedback, enabling quicker reaction times for stable file settings.

• The patented brushless DC motor control responds to torque loads faster than competitors.
• In reciprocating motion, the X-Smart® Pro+ reaches the apex 21% faster.
• In rotary motion, the X-Smart® Pro+ reaches the apex 14% faster.

Specifications

• Reciprocating and rotary motions.
• Includes file library with preset programs for WaveOne® Gold, ProTaper Ultimate™, TruNatomy®, RECIPROC® family, and VDW.ROTATE® endodontic file systems.
• Customizable file sequences, compatible with other endodontic files and instruments.
• Auto-reverse rotation at preset torque limit and at doctor’s desired working length.
• On/Off button on the motor handpiece or optional wireless foot switch.
• Calibration function (CAL) for precise torque setting.
• 7˝ touchscreen interface.
• Mini contra-angle with integrated 10-Lumen LED.
• 360° adjustable position.
• Lithium-ion battery.
• Autonomous operation through a full day of work.
• Fully recharged in only 1.5 hour.
• Motor can be run on battery only or can be recharged during treatment.
• Universal charger (voltage 110–240, 50/60 Hz).
• Torque range: 0.2 N·cm – 7.5 N·cm.
• Speed range: 100 rpm – 3,000 rpm.
• Fully autoclavable handpiece sheath and contra-angle.
• Upgradeable via Wi-Fi.

Contents

• X-Smart® Pro Endo Motor
• Mini Contra Angle with Integrated LED
• 360° Adjustable Postion Stainless Steel Handpiece Sheath
• Magnetic Handpiece Holder
• Accessories Box (charger with universal power adaptors)
