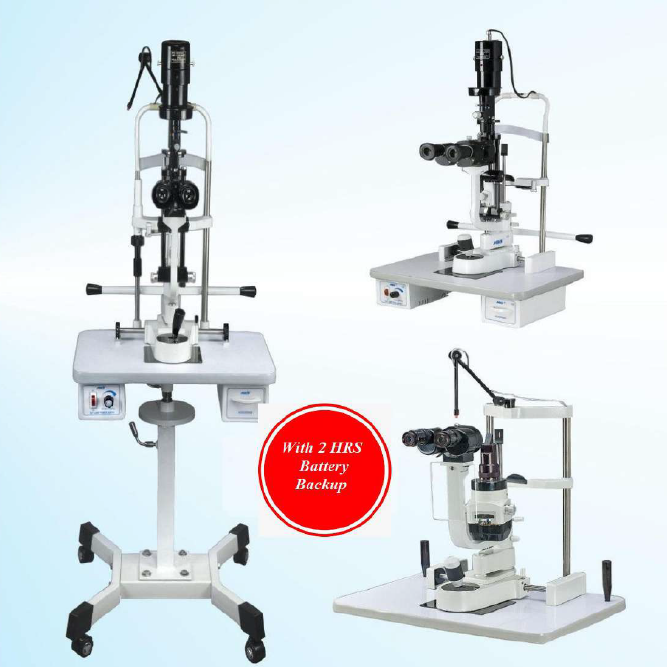

Led Slit Lamp Bio Microscope

The MSL Series Microscopes are precision optical instruments designed for advanced visual observation in medical, scientific, and industrial settings. Available in three models – MSL-25, MSL-35, and MSL-55 – each microscope offers versatile magnification, robust field of view, and adjustable features for high-performance applications.

Key Features:

1. Optical System: The microscopes use Galilean optical technology for clear and magnified views, ensuring accuracy in observations.

2. Magnification: Each model offers a range of magnifications through its objective lenses, providing multiple options for visual enhancement, from 10X to 40X, depending on the model.

3. Field of View: With real fields of view ranging from 28mm to 35mm, these microscopes offer ample space for detailed examination.

4. Eyepiece and Diopter Adjustment: The eyepiece includes various options, such as 10X and 15X for the MSL-25 and 12.5X for the MSL-35 and MSL-55, along with diopter adjustments of up to +5 for optimal clarity.

5. Lighting and Filters: The built-in lighting system includes 6V 30W Halogen Lamps and 12V 10W LED options. Each model features cobalt blue, neutral density, and red-free filters, along with heat-absorbing filters for various visual needs.

6. Slit System: The slit system offers adjustable widths (0-12mm) and lengths (0-12mm), with options for slit apertures ranging from 0.2mm to 14mm, ensuring precision in illumination and observation.

7. Movement Range: The microscopes offer robust movement control with joystick-driven coaxial adjustments, allowing longitudinal, lateral, and vertical adjustments. The chin rest is also adjustable (80mm up/down) for comfort.

8. Power Supply: Designed for versatility, these microscopes support a wide voltage range (90V to 270V) for global compatibility.

9. Durability and Weight: Each model is built with a sturdy table base (520mm x 350mm) and weighs 23kg, ensuring stability and durability.

The MSL Series Microscopes are ideal for professionals seeking reliable, high-quality magnification tools in a range of settings, offering optimal performance and customizable features.
