PioNext Mini All-in-One Dental 3D Printer – Fast Chairside Printing & Curing System (9K LCD, 10-Min Prints)

Revolutionize Your Chairside Workflow

The PioNext Mini All-in-One Dental 3D Printing Solution is engineered for modern dental clinics and labs that demand speed, precision, and efficiency. Designed with integrated printing and curing capabilities, this compact powerhouse enables same-day restorations with unmatched convenience.

⚡ Key Features

• All-in-One System – Print and cure in a single machine for seamless workflow
• Ultra-Fast Production – Achieve prints in as little as 10 minutes
• High Precision 9K LCD – Delivers exceptional detail with 18μm pixel accuracy
• Compact Mini Design – Space-saving footprint ideal for clinics
• Enhanced Durability – Extended screen lifespan for long-term reliability

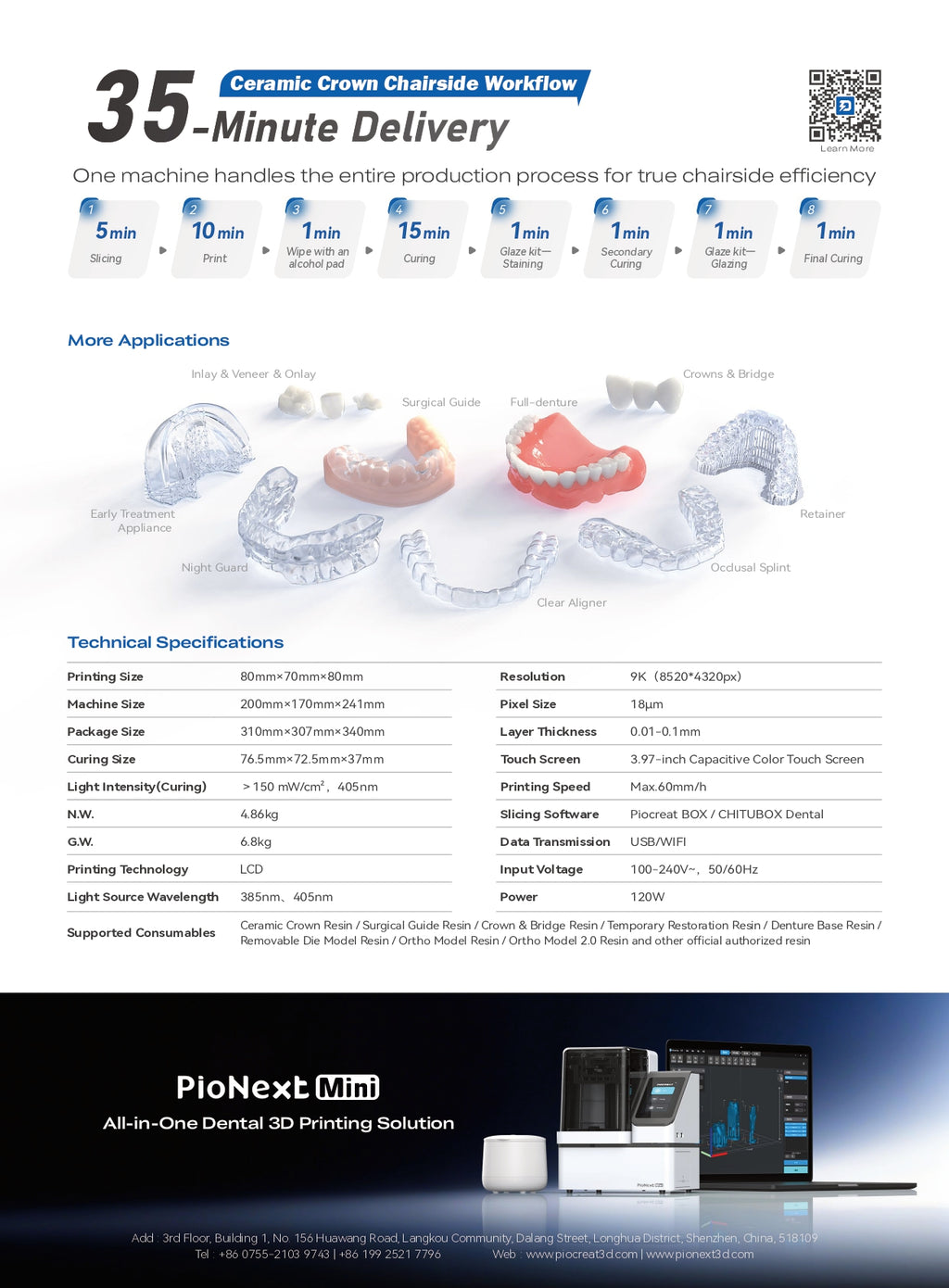

⏱️ 35-Minute Ceramic Crown Workflow

Streamline your restorative procedures with a rapid chairside process:

• Slicing: 5 min
• Printing: 10 min
• Cleaning: 1 min
• Curing: 15 min
• Finishing (glazing & curing): ~4 min

➡️ Deliver high-quality ceramic crowns in just 35 minutes

🦷 Wide Range of Applications

• Crowns & Bridges
• Clear Aligners
• Surgical Guides
• Dentures & Full Denture Bases
• Night Guards & Splints
• Veneers & Inlays
• Retainers & Orthodontic Models

🔧 Technical Specifications

• Printing Technology: LCD
• Resolution: 9K (8520 × 4320 px)
• Layer Thickness: 0.01–0.1 mm
• Print Speed: Up to 60 mm/h
• Light Source: 385nm & 405nm
• Curing Intensity: >150 mW/cm²
• Connectivity: USB / WiFi
• Touchscreen: 3.97” Color Display
• Power: 120W

💡 Why Choose PioNext Mini?

• Reduce lab dependency and turnaround time
• Improve patient satisfaction with same-day delivery
• Increase clinic profitability with efficient workflows
• Reliable performance with advanced dental-grade materials

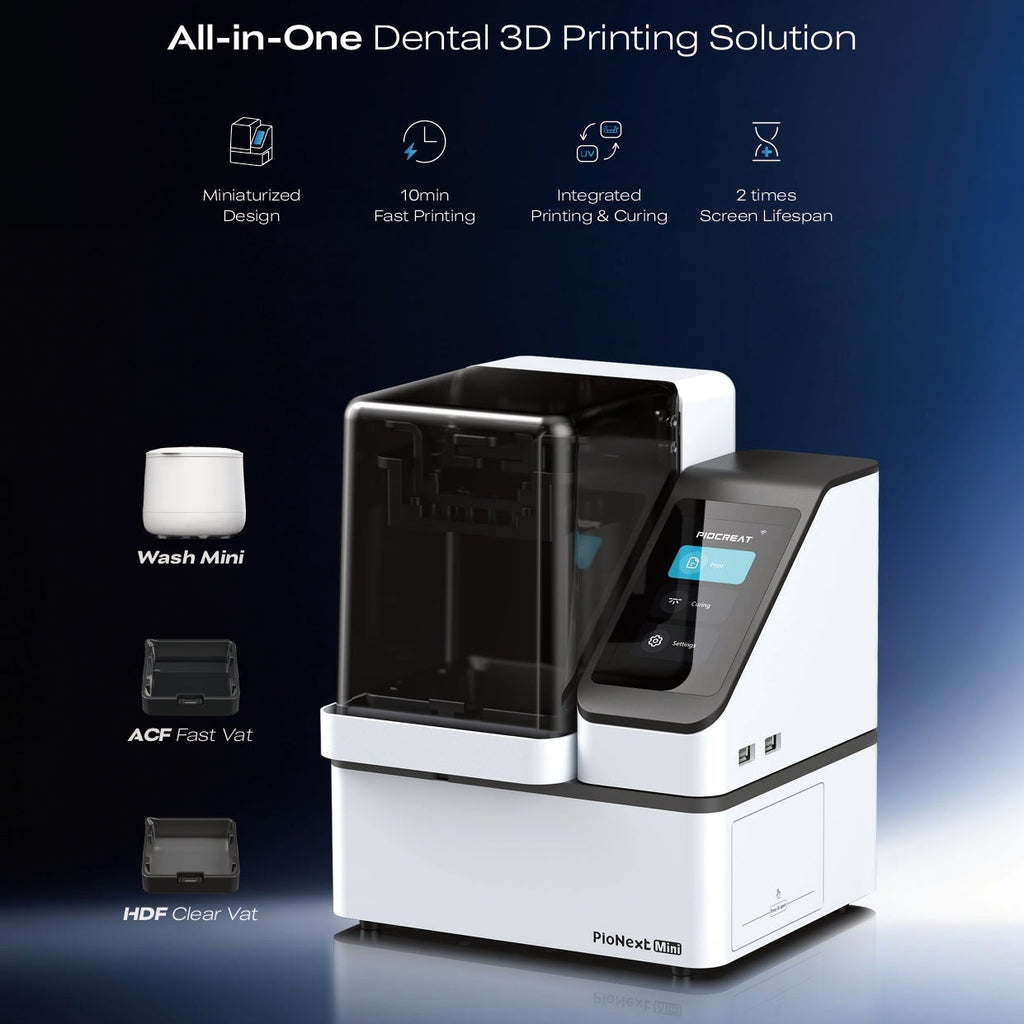

📦 What’s Included

• PioNext Mini Printer Unit
• Wash Mini Unit
• Resin Vat Options (ACF Fast Vat & HDF Clear Vat)
• User Interface Software Compatibility (CHITUBOX Dental / Piocreat BOX)
