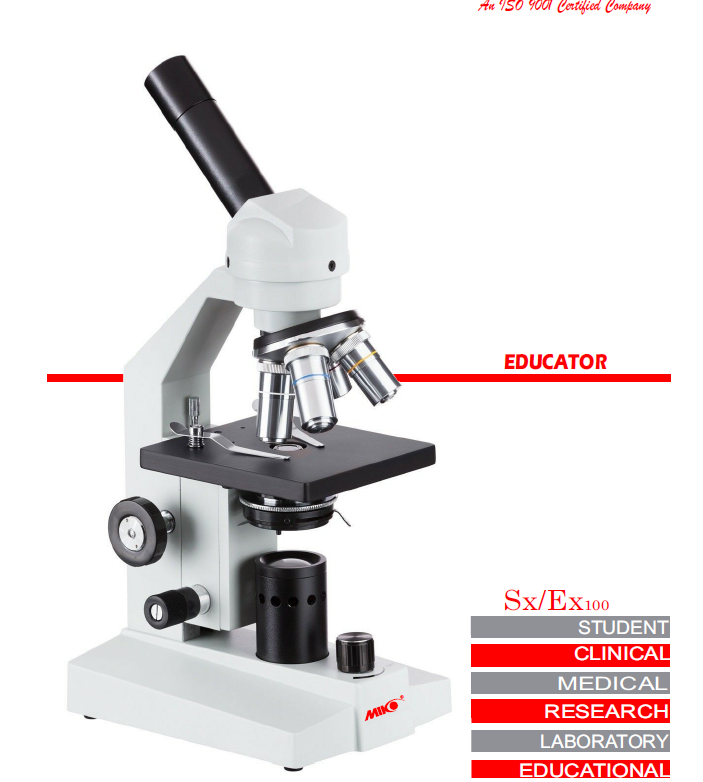

Educational Microscope Sx100

Introducing the high-performance microscope designed for precision and versatility in your lab work. This microscope features:

- Stand: A sturdy metal base and arm with built-in halogen/LED illumination, offering reliable lighting for your specimens.
- Focus Drive: Separate coarse and fine focus knobs with knurled hand grip for easy adjustment. Includes an adjustable focus stop for precise focal control.
- Nosepiece: Choose between a triple (3x) or quadruple (4x) nosepiece, each with precision click stops and a rubber grip for smooth transitions between objectives.
- Specimen Stage: A double plate mechanical stage measuring 110mm x 120mm, equipped with co-axial X-Y drive knobs for accurate specimen positioning.
- Specimen Holder: Features spring-loaded clips for secure specimen mounting or a single slide holder with a 30mm x 75mm scan area.
- Condenser: Available in two options: NA 0.65 / 0.90 with an iris diaphragm, or fixed achromatic Abbe NA 1.25 with an iris diaphragm for better specimen contrast and clarity.
- Built-In Illumination: Options include LED with battery backup and charger, or a 20W halogen with an easy-change lamp holder for consistent lighting.
- Power Supply: CE compliant, with an internal or external power supply module (90-220V, 50Hz) for easy replacement.
- Tubes (360° Rotatable): The 45-degree monocular head features a safe locking screw, offering comfortable viewing and secure operation.
- Achromat Objectives: Four high-quality objectives – 4x/0.10, 10x/0.25, 40x/0.65 (spring), and 100x/1.25 (oil) – for high-resolution imaging.
- Eyepiece: Available in WF10x18mm, WF15x13mm, or WF20x10mm, providing a broad field of view for detailed observation.
- Dust Cover: Keeps your microscope free from debris when not in use.
- Optional Accessories: Enhance functionality with blue filters, eyepiece with pointer, eyepiece with reticule, and a protective wooden case for storage and transport.
- Binocular Head (Optional): A 45-degree binocular head with safe locking screw and IPD adjustment for comfortable dual-eye viewing.

This microscope is built to provide reliable performance and versatility for a range of laboratory applications.
